Overview

Replacement rules (Beta)

This feature is in Beta. Its behavior may still change from feedback. Please report any issue or feedback on the sfdx-hardis GitHub repository.

What are replacement rules?

Some metadata must not be the same in every org: the endpoint of a Named Credential, the sender address of an email alert, the admin of an Experience Cloud site, a password. Other metadata comes from a sandbox already on the next Salesforce release and holds XML elements production does not know yet, so the deployment fails.

Replacement rules change the metadata files right before each deployment, for the org the deployment goes to, then put the files back. Git keeps one version of each file.

They apply to:

  • hardis:project:deploy:smart: deployment checks of Pull Requests, deployments to major orgs, quick deploys.
  • Scratch org deployments with a manifest (CI_SCRATCH_MODE=deploy), and org initialization of pool orgs.
  • Backpromote deployments to developer sandboxes.

Only the files that are deployed are changed (the components of the package.xml, so a delta deployment stays a delta deployment).

Your own rules only exist once you write them. Built-in rules are on by default, without any configuration. If they cause trouble, turn every rule off with one setting.

Rules are configured from the Replacement Rules panel of VS Code (settings menu of the DevOps Pipeline), or with commands.

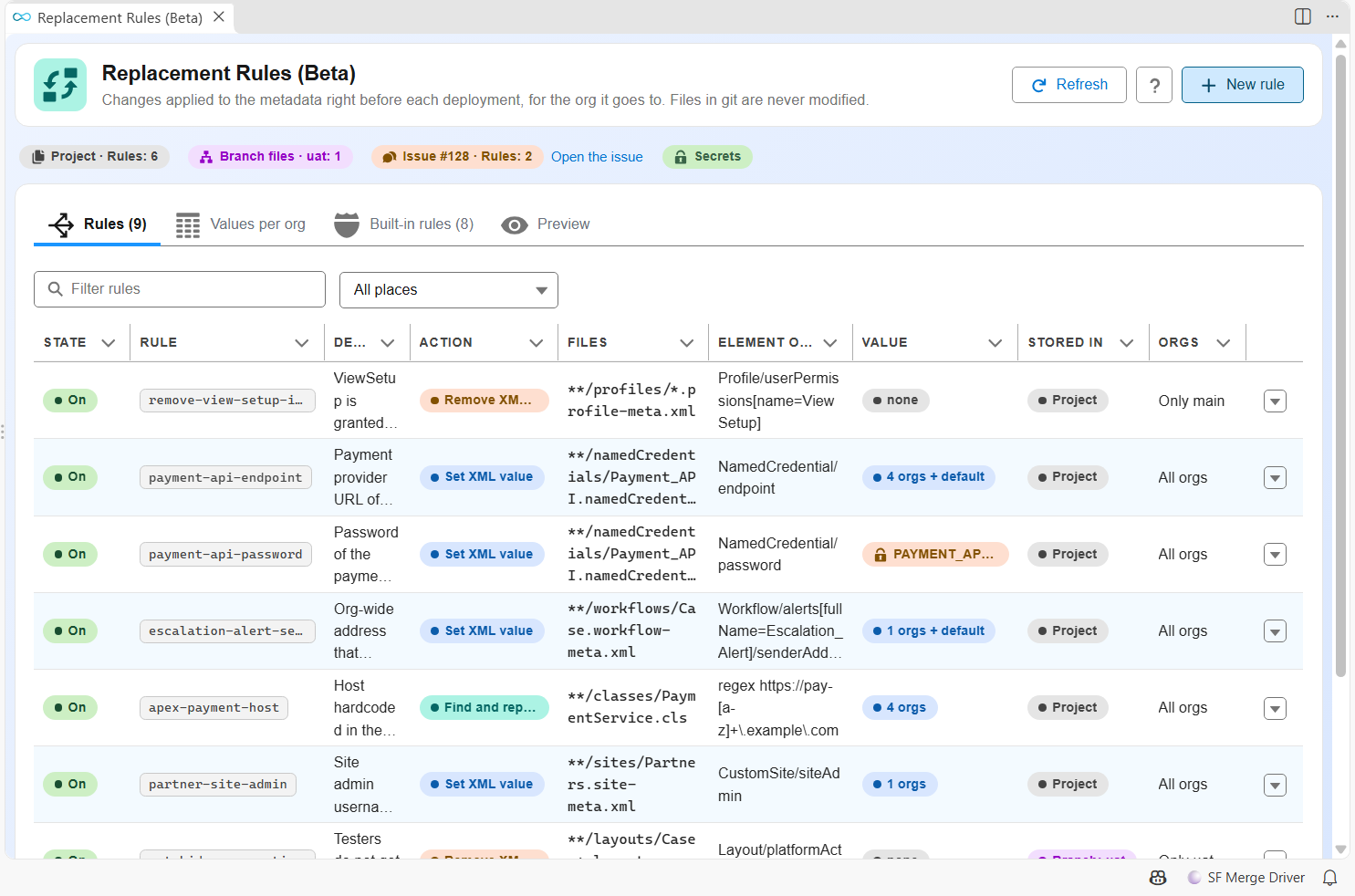

Replacement Rules panel: the rules of the project, the uat branch file and the issue

Rule types

Type What it does Example
xml-value Writes the value of the target org in an XML element, whatever git holds NamedCredential/endpoint
xml-remove Removes an XML element before deploying Profile/userPermissions[name=ViewSetup]
text Finds and replaces a text or a regular expression, in any file (Apex, LWC, JSON) https://pay-[a-z]+\.example\.com in PaymentService.cls

xmlPath is a path of elements from the root, without namespace:

Path Matches
NamedCredential/endpoint The endpoint element under the root
Profile/userPermissions[name=ViewSetup] The whole userPermissions block of one permission
Profile/fieldPermissions[field=Account.Secret__c] The access to one field
//dayOfMonthToRun dayOfMonthToRun at any depth
Flow/screens//fields/styleProperties styleProperties of screen fields, at any depth
Workflow/alerts[fullName=Escalation_Alert]/senderAddress The sender of one email alert
Layout/excludeButtons[.=SmartFillEnrich] The excludeButtons element holding this value

For example, to remove one user permission from every Profile deployed to production:

replacementRules:
  - id: remove-view-setup-in-production
    description: ViewSetup is granted in the sandboxes only
    type: xml-remove
    files: "**/profiles/*.profile-meta.xml"
    xmlPath: Profile/userPermissions[name=ViewSetup]
    includeTargetBranches: [main]

In the VS Code panel, New rule opens the editor. The help of the Element field lists the common paths.

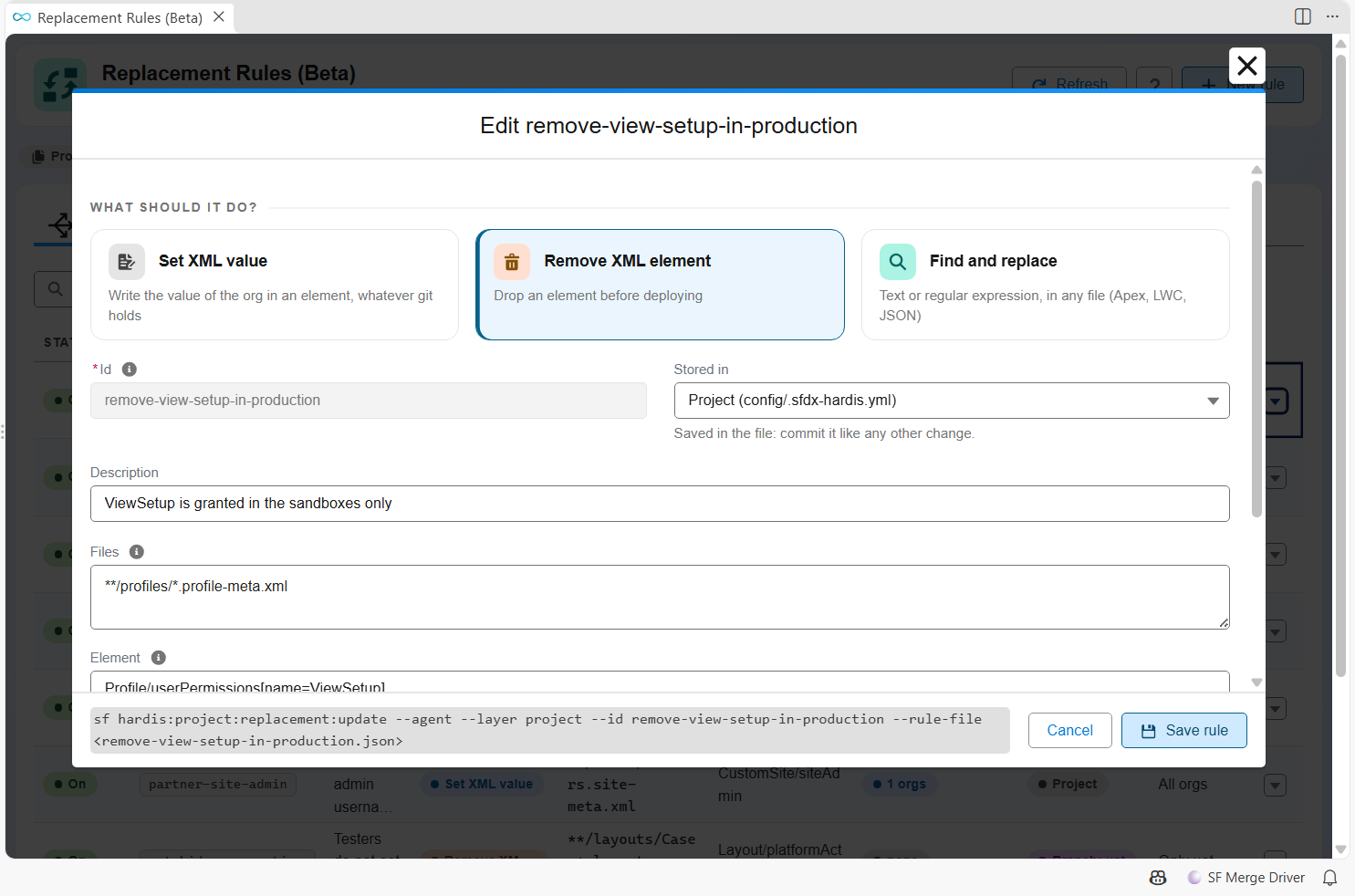

Rule editor removing one user permission of the Profiles deployed to production

The same rule works for Permission Sets with files: "**/permissionsets/*.permissionset-meta.xml" and xmlPath: PermissionSet/userPermissions[name=ViewSetup].

An xml-value rule never creates a missing element: it reports "not found". A text rule replaces every occurrence, and its replacement is literal (no $1), so a value containing $ is safe.

Values per org

replacementRules:
  - id: payment-api-endpoint
    description: Payment provider URL of each environment
    type: xml-value
    files: "**/namedCredentials/Payment_API.namedCredential-meta.xml"
    xmlPath: NamedCredential/endpoint
    values:
      integration: https://pay-int.example.com
      uat: https://pay-uat.example.com
      preprod: https://pay-staging.example.com
      main: https://pay.example.com
      default: https://pay-sandbox.example.com
    required: true
  • value: the same value for every org.
  • values: one value per target branch. default applies to developer sandboxes, scratch orgs, and the branches without their own value. An org with no value and no default keeps the file of git.
  • includeTargetBranches / excludeTargetBranches: limit the rule to some target branches, like deployment actions (dev-sandboxes means any org that is not a major branch).
  • required: true: warns in the Pull Request comment when the files of the rule are deployed but nothing matched.

The target branch is the target of the Pull Request in a deployment check, and the branch being deployed in a deployment job.

The Values per org tab of the panel shows the value each org gets, and the CI/CD variables a secret is read from:

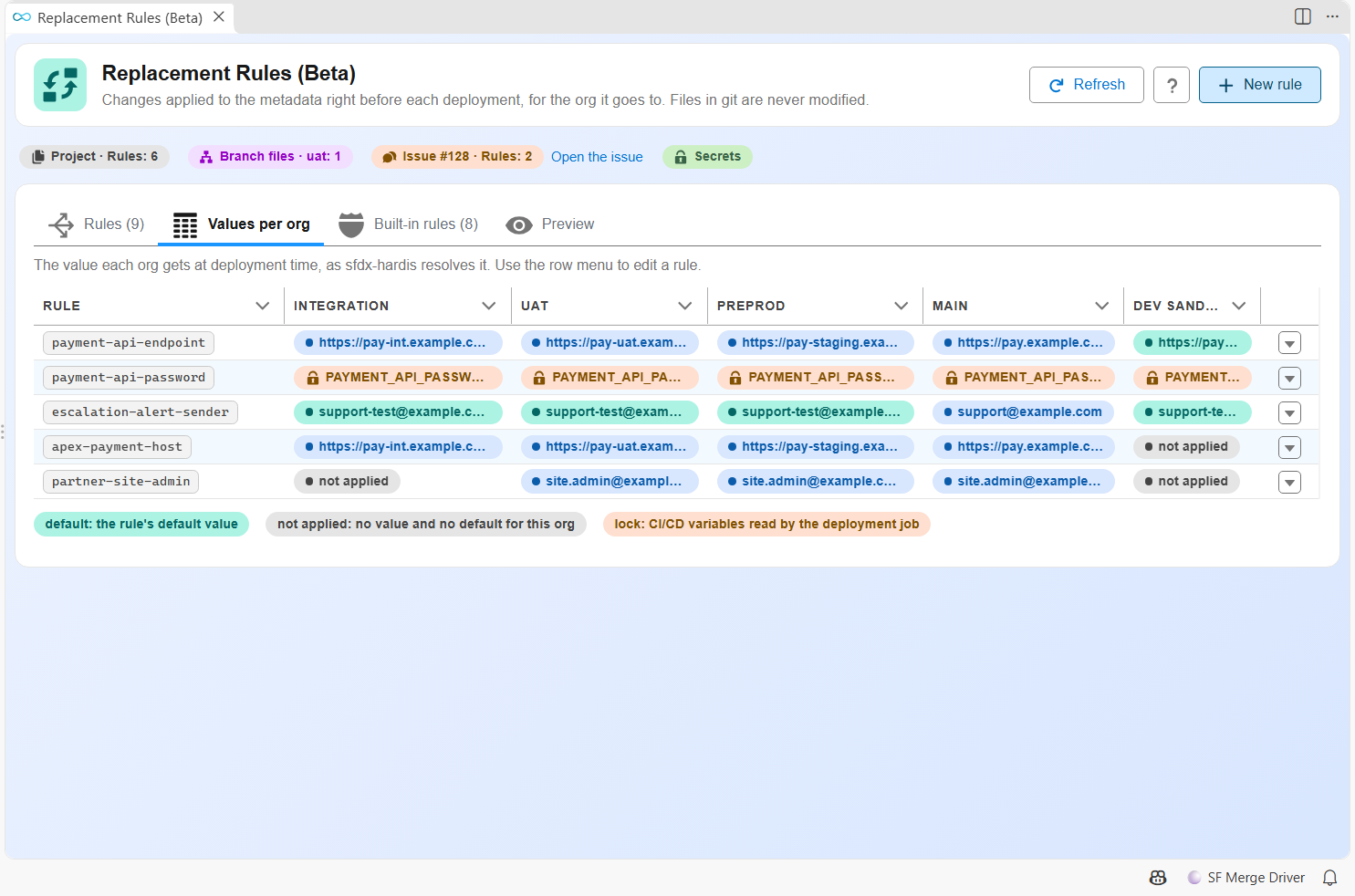

Values per org: one row per rule, one column per major branch and one for developer sandboxes and scratch orgs

Secrets

  - id: payment-api-password
    type: xml-value
    files: "**/namedCredentials/Payment_API.namedCredential-meta.xml"
    xmlPath: NamedCredential/password
    secret: PAYMENT_API_PASSWORD

secret is the name of a CI/CD variable, never a value. When deploying to uat, sfdx-hardis reads PAYMENT_API_PASSWORD_UAT first, then PAYMENT_API_PASSWORD: the same convention as SFDX_CLIENT_ID_<BRANCH>.

Secret values never appear anywhere:

  • They are registered with the masking of the CI (::add-mask:: on GitHub Actions, task.setsecret on Azure Pipelines), and replaced by *** in every log line, command output, Pull Request comment and notification of sfdx-hardis.
  • On GitLab, Bitbucket and Jenkins, declare the variable as masked (or secured) in the CI settings, so the CI masks it too.
  • preview and list --json only show variable names.

When a secret is missing, the rule is skipped, the file of git is deployed, and the Pull Request comment shows a warning with the variable names that were looked up.

On GitHub Actions, a workflow only sees the secrets it passes to its jobs: add your variables to the env of the deployment check and deployment workflows.

      env:
        PAYMENT_API_PASSWORD_UAT: ${{ secrets.PAYMENT_API_PASSWORD_UAT }}
        PAYMENT_API_PASSWORD_MAIN: ${{ secrets.PAYMENT_API_PASSWORD_MAIN }}

secretsProvider: ciVariables (the default) is the only provider today. Vaults (HashiCorp Vault, Azure Key Vault, AWS Secrets Manager) will be other values of this property.

Where rules are stored

Rules merge by id, each place changing the ones before it:

  1. Built-in rules shipped with sfdx-hardis.
  2. Project: config/.sfdx-hardis.yml.
  3. Branch: config/branches/.sfdx-hardis.<branch>.yml of the target branch only.
  4. Issue: the "sfdx-hardis Replacement Rules" issue of the git provider.

A rule with the same id in a later place changes only the fields it sets, and values are merged org by org. Setting another value source replaces the previous one: values over a single value keeps that value as the default. For example, this branch file changes the uat value of the project rule:

replacementRules:
  - id: payment-api-endpoint
    values:
      uat: https://pay-uat2.example.com

and enabled: false turns a rule off.

Fix a deployment without a commit: the issue

The issue holds rules in a YAML block of its body. Editing it changes the rules of the whole project at the next deployment job, without any commit or merge: useful to fix a Pull Request between major branches that fails because of a value.

  • GitHub and GitLab: an issue. Azure DevOps: a work item. Bitbucket: a dedicated Pull Request that is never merged.
  • Edit the YAML block in the web UI, from the VS Code panel, or with sf hardis:project:replacement:update --layer issue. On Azure DevOps, prefer the panel or the command: the rich text editor can damage YAML.
  • Once the fix is in the repository, delete the rule from the issue.
  • A quick deploy reuses the package of the deployment check: after changing the issue, run the check of an open Pull Request again.
  • The issue is only read when its author has write access to the repository (GitHub owner, member or collaborator, GitLab Developer or more; Azure DevOps work items and Bitbucket Pull Requests already need it). An issue with this title opened by someone else is ignored, with a warning in the Pull Request comment: close it and create the rules again from VS Code or with the command.
  • A rule of the issue cannot use secret: secrets only come from the configuration files of the repository, which are reviewed in Pull Requests.
  • Anyone who can edit the issue can still change values and removals that reach production. Rules coming from the issue are marked in the job log and the Pull Request comment.

Built-in rules

Some deployments fail on what the target org does not accept, not on your metadata: sources retrieved from a sandbox on the next Salesforce release hold XML elements production does not know yet (Element {http://soap.sforce.com/2006/04/metadata}dayOfMonthToRun invalid at this location), and a Profile can grant a user permission the target org does not have (Unknown user permission). Built-in rules remove them before deploying:

  • XML elements the deployment API version of the target org does not know yet, or does not accept anymore, like the Flow ends saved from Winter '27 when production is still on Summer '26.
  • User permissions of Profiles and Permission Sets the target org does not have: sfdx-hardis reads the permissions of the org itself, so a permission of a cloud or a license the org lacks is removed too.
  • Elements whose removal would change what a component does (without limit, a Get Records element returns every record) are off by default: the Pull Request comment warns that the deployment will fail and names the rule to turn on.

The full list, with the API version of each rule and every user permission, is on its own page: Built-in replacement rules.

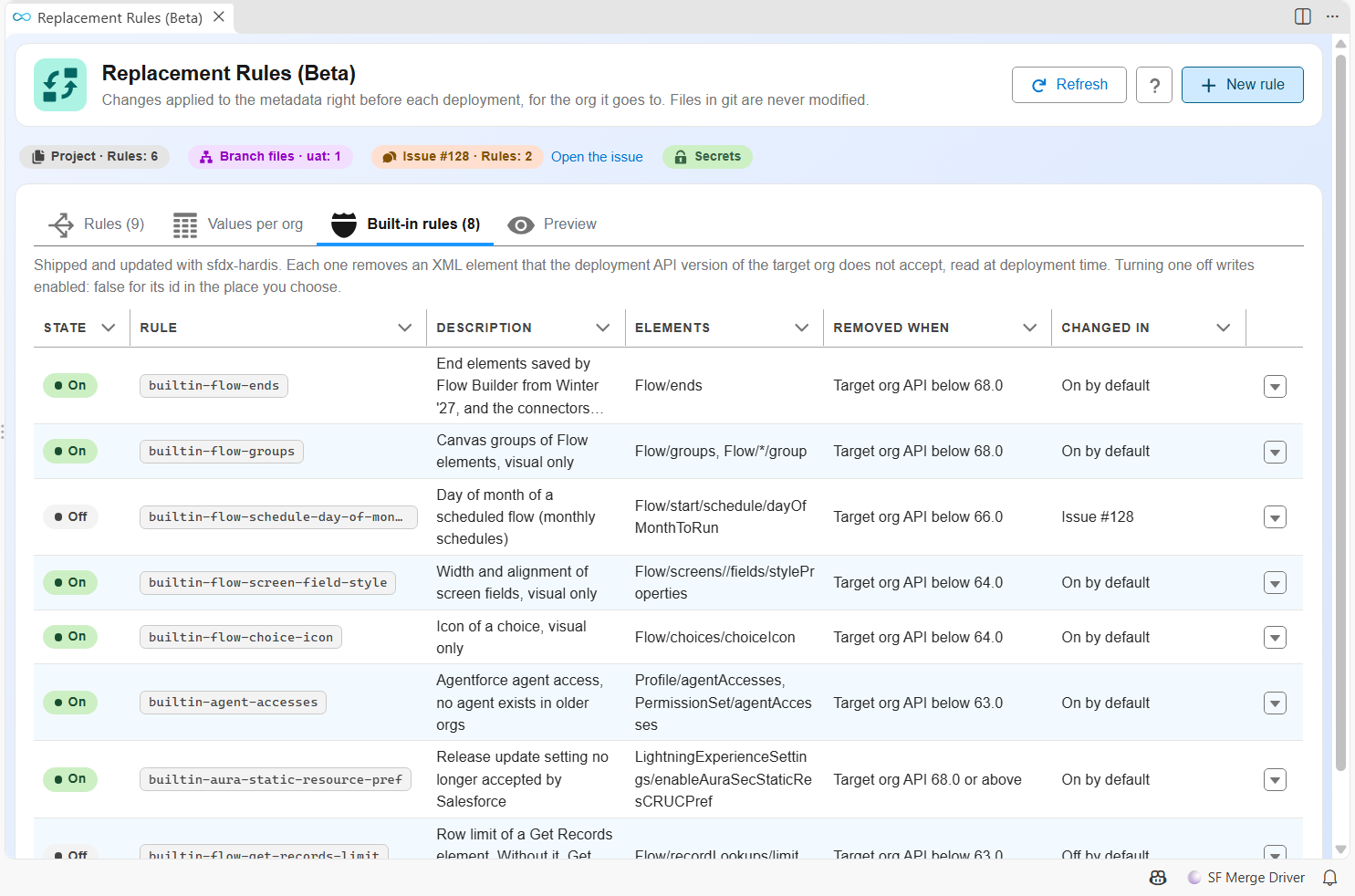

Built-in rules tab of the panel, each rule turned on or off in the project or the issue

Turn a built-in rule on or off with enabled, in any place:

replacementRules:
  - id: builtin-flow-get-records-limit
    enabled: true
  - id: builtin-flow-ends
    enabled: false

Commands and VS Code panel

Every action exists as a command, and every command runs without prompt with --agent:

Command Purpose
hardis:project:replacement:list Rules of every place, effective rules of every org, built-in rules
hardis:project:replacement:create Add a rule to a place
hardis:project:replacement:update Change a rule, or turn a rule on or off
hardis:project:replacement:delete Remove a rule from a place
hardis:project:replacement:preview What the rules would change for a target org, without writing
sf hardis:project:replacement:preview --target-branch main --api-version 67.0

In VS Code, the Replacement Rules panel (DevOps Pipeline settings menu) shows the rules, a grid of values per org, the built-in rules and the preview. It runs these commands: the files it writes are the same as the ones written from the terminal.

The Preview tab runs hardis:project:replacement:preview for the org you pick, and lists what each rule would change in your local files:

Preview of the rules for a deployment to production

Pull Request comments

The deployment check and deployment comments have a Replacement rules section: the rules applied, where they come from, the number of files they changed, and the warnings (missing secret, required rule without match, invalid rule, unreadable issue, element that will make the deployment fail). It is open when there are warnings. Values are never shown.

Turn every rule off

To stop all replacement rules at once, built-in ones included, for example while you investigate a deployment that behaves differently than expected:

  • In config/.sfdx-hardis.yml, for every org of the project:

    skipReplacementRules: true
  • In the branch config file of one major org (config/branches/.sfdx-hardis.uat.yml), for that org only. skipReplacementRules: false there runs the rules for that org even when the project file skips them.
  • With the CI/CD variable SFDX_HARDIS_SKIP_REPLACEMENT_RULES=true, without a commit. It wins over the config files.

The files are then deployed exactly as git holds them, and the Pull Request comments say the rules were skipped. To turn off only one rule, set enabled: false on its id instead (see Built-in rules).

Good to know

  • Files are changed in place during the deployment and always put back, also when the deployment fails or the job is interrupted. A run killed before restoring them (power loss) is repaired by the next run in the same folder.
  • A plain scratch org push (source tracking, without manifest) does not apply the rules: tracking would record the changed files, and the restored files would then look modified at every push.
  • Native replacements of sfdx-project.json keep working: sf CLI applies them when building the deployment.
