Flow Visual Git Diff
In addition to deployment tips, Deployment Agent can post Flow Visual Git Diff in Pull Request comments.
This helps reviewers:
- Visually inspect Flow differences in a Mermaid diagram
- Understand updates without opening raw XML metadata

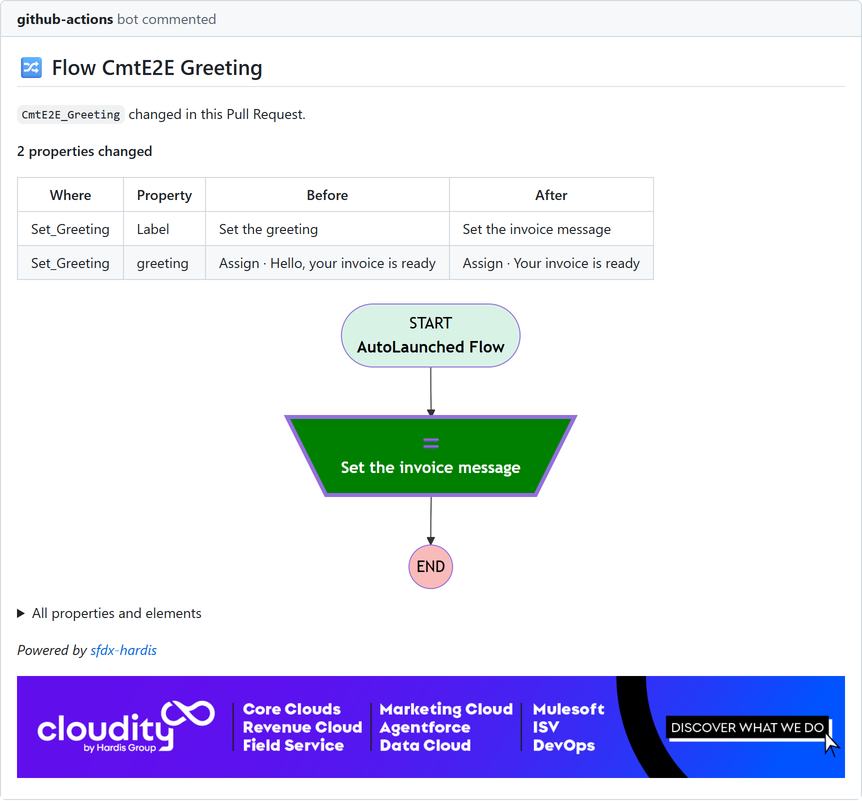

Each changed Flow gets a comment of its own: the properties that changed, with their value before and after, then the diagram. The full property tables of the Flow are folded below it.
A Flow whose only change is its status (activated or deactivated) gets no visual diff comment: the change is one line, and the validation comment counts it with the other metadata.
Legend
- 🟩 = added
- 🟥 = removed
- 🟧 = updated
Disable if needed
To disable Flow Visual Git Diff in Pull Request comments, set:
SFDX_DISABLE_FLOW_DIFF=true
